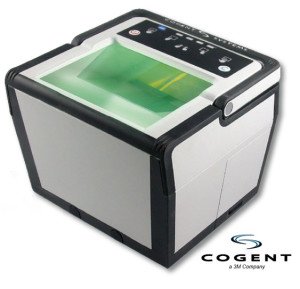

3M Cogent CS500e live fingerprint scanner

3M Cogent CS500E www.idvafrica.com

3M Cogent CS500e live fingerprint scanner is an easy-to-learn, user-friendly system that captures rolled and flat fingerprints. The software guides the operator through the capture process with on-screen prompts and graphical displays.

3M Cogent CS500e live fingerprint scanner is a lightweight, compact, yet powerful device. It is FBI-certified according to the IAFIS Image Quality Specifications (IQS) for scanners, Ingress Protection (IP) Level 54 compliant, FIPS 201 certified, and MIL-STD-810F certified.

Box Size:1
Unit Size:5.95 x 5.97 x 4.74 in. (151 x 151.6 x 120.5 mm)


  • Supports flat and/or rolled capture capabilities
  • Automatic calibration and table updates
  • Preformatted data fields based on predefined lists
  • Configurable data input features to meet state and federal specifications
  • Fully compliant with ANSI/NIST standards
  • Certified for FBI IAFIS Appendix F, FIPS 201, and MIL-STD-810F; IP 54 compliant
  • Submission acknowledgement, tracking, and reporting
  • Lightest and most compact tenprint LiveScan available

Specifications :


  • Resolution: 500 ppi
  • Active Platen Area: 3.2 x 3.0 in. (81.28 x 76.2 mm)
  • Platen Size: 3.8 x 3.1 in. (97.6 x 78.6 mm)
  • Capture Mechanism: Automatic, via foot pedal switch, or via capture button
  • Capture Format: Single fingerprint rolls, single fingerprint flats, four finger slaps, two thumbs
  • Available SDKs: FPCaptureAccess; FPCaptureExpress

Mechanical :

  • Power: Input:5 V DC via USB, Consumption: 500 mA max
  • LED Indicators: Power, status, and fingerprint image quality
  • Illumination: Near Infra Red (NIR)
  • Interface: USB 2.0

Physical characteristics:

  • Weight: 3.75 lbs (1.7 kg)
  • Dimensions: 151 x 151.6 x 120.5 mm


  • Opertaing Temperature: 32° to 104° F (0° to 40° C)
  • Humidity: 10-90%, non-condensing
  • Storage Temperature: -4° to 158° F (-20° to 70° C)

For best offers on 3M Cogent cs500e live scanner  in Kenya, Uganda, Tanzania, Nigeria, Rwanda,Algeria and other African countries contact IDV Technologies Africa on +971 56 915 7218 /sales@idvafrica.com / https://www.idvafrica.com
