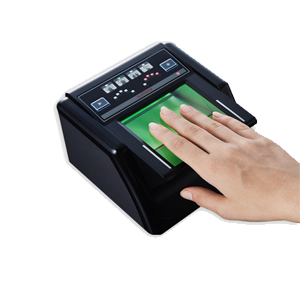

SUPREMA REALSCAN G10

FBI Certified Ten-Print Enrollment Scanner

Suprema RealScan-G10 is designed to capture single and 10 fingerprints (4+4+2 and rolled prints) with leading-edge optical technology and precise image construction technique.Reaching incredible frame rate over 20fps, the device features extra high-speed processing with superior image quality. With its proven reliability with FBI IAFIS Appendix F certification, RealScan-G10 is the perfect ten-print capture enrollment scanner for various forensic and civil applications.

FBI IAFIS Appendix F Certification

The certification provides assurance to users that RealScan-G10 meets or exceeds FBI interoperability standards and
will work with the Integrated Automated Fingerprint Information System (IAFIS). It ensures that the images used are high quality and support all phases of identification for fingerprint experts and the IAFIS. Appendix F has stringent image quality conditions, focusing on the human fingerprint comparison and facilitating large scale machine many-to-many matching operation.

Extra Wide Platen for Easier Capturing

Wide & solid, the RealScan-G10’s 3.5 inch platen is the largest size in its class and ensures easier capturing when placing
hands. The solid & scratch-free surfaces makes it durable for many kinds of stains & damages. IDV Technologies Africa is trusted supplier of wide range of fingerprint scanners.

Rugged IP54 Dust & Waterproof Structure :

RealScan-G10’s body structure has been comprehensively sealed against invasive moisture, dust and liquid. Featuring superb IP54 rated protection through meticulous sealing, combined with extra protective engineering, ensures faultless operation even under harsh conditions.

APPLICATIONS :

Civil Identification
Driver’s license, voter registration
Social welfare, banking
National Population register (NPR)

Criminal Identification
IAFIS / EURODAC
Law enforcement, national police agencies
Crime and Criminal Tracking Network & Systems (CCTNS)

Background Check
Employment background checks
Pre-employment screening

Airport & Border Check
IDENT (USA, Japan)
Enrollment & matching for foreign travelers

e-Passport & Visa
e-Passport issuance
e-Visa program

National ID Cards
Smart ID cards
Enrollment 1:1, 1:N matching

SPECIFICATIONS :

Main Fingerprint Type Single Rolls
Single Flats
Four Finger Slaps
Two Thumbs
Frame Rate 20 frames per second
Capturing Speed 4+4+2 in 15 seconds
Resolution 500 dpi, 256 gray
Platen Size 89 x 80 mm (3.5” x 3.15”) (W x L)
Sensing Area 81.28 x 76.2 mm (W x L)
Image Size Four Finger Slap: 1600 x 1500 pixels
Finger Roll: 800 x 750 pixels
Image Quality Standards FBI IAFIS Appendix F
Interface USB 2.0 High-speed (Data & Power)
Hardware IP Rating IP54
Speakers Built-in
LED indicator Yes
Operating Temperature 0°C ~ 50°C
Operating Humidity 10 ~ 90%, non-condensing
Dimension 152 x 152 x 127 mm (5.9” x 5.9” x 5.0”) (W x L x H)
Weight 1.8kgs (3.96lbs)
Certification WHQL, CE, FCC, UL, KCC, IP54
Compatibility Operating System Windows
Linux
