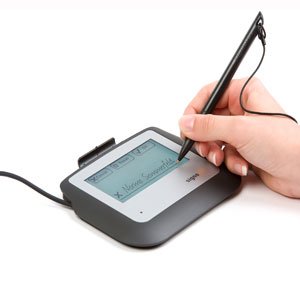

Signotec Sigma LCD Signature Pad

signotec_sigma_signature_pad

The LCD Signature Pad “signotec Sigma” is the little brother of the successful Signature Pad “Omega”. The “signotec Sigma” is a device to signatures, fully developed by signotec and Made in Germany, with an unbeatable price-performance ratio. Measuring just 160 x 120 x 10 mm, it is extremely compact and therefore ideal for the mobile use. When used stationary it characterized with its flat design and the optional pen holder.

The signotec Sigma Signature Pad is available with and without backlight!

The signotec Sigma signature pad sets a new standard for electronic signature capture devices, in terms of its size and the resolution of the display. Among the device’s unique features, are the outstanding display of graphics and text, the technical properties for digitising signatures, its extremely flat design and, above all, its smooth surface and a sensor flushed with the housing. This design enables signing to be highly ergonomic. The rounded sides also allow the heel of the hand to pass fluidly from the device to the table without disrupting the signing process.

The high sensor rate also allows for “swinging” signatures, without the user inadvertently reaching the limits of the sensor. This is vital to ensure that the signature is captured naturally and securely. Furthermore, graphical and textual information can be displayed, which often plays an important role in stationary use. As a result, the pad is also an inexpensive alternative for stationary applications.

The transfer of data from the pad to PC is encrypted, thereby it is not possible to spy on the biometric features of the signature. Since the electronics, firmware, drivers and applications have been developed by signotec itself, the hardware and software are matching perfectly.

Get the best price on signotec Sigma  Signature pads from IDV Technologies Africa Dubai, supplier of Signotec Signature Pads in , Saudi Arabia, GCC countries, Middle east , Indian Subcontinent and Africa.

Technical Specifications

Display 4″ (10,5 cm) b/w Display with or without backlight
Active Signing Area 100 x 50 mm
Dimensions 160 x 120 x 10 mm
Text-Display Unlimeted fonts and sizes
Grafik-Display Any graphics up to 320 x 160 pixel
Navigation Unlimited screens, Hot-Spots (buttons) and Scroll-Function
Security AES-Encryption, RSA-signing. Signatures biometrics RSA-Encryption inside the pad.
Connection USB (HID, no driver installation required)
Terminalserver Yes. Optinal with internal virtual USB-Seriell-Converter (FTDI)
Internal Samplingrate 6000 Hertz
External Samplingrate 500 Hertz
Resolution 1040 dpi, not interpolated
Pen No special pen, cheap replacement
Sensor Scratch resistant surface
Warranty 2 Years
