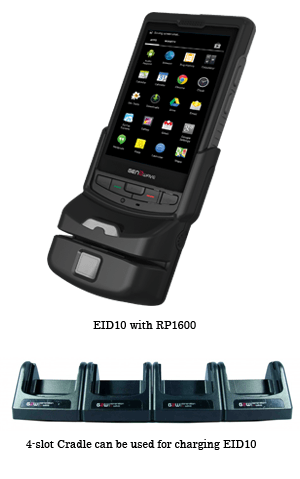

EID10 Auto-ID Reader

New concept of all-in-one auto-ID reader
Miniature OCR/MRZ reader delivers enhanced features for industrial smart phones

Multi-functional accessory

  • All-in-one type of unique auto-ID reader.
  • Various recognition types such as fingerprint, OCR(MRZ, Passport Reader), MSR, NFC, IC card and 1D/2D barcord
  • Compatiable with RP1600 and RP1500 series

Auto-ID Reader(EID10) specification

OCR (MRZ Reader)
 Standard OCR Fonts  OCR-B and E13B
 Machine Readable Passports (MRP)  2 lines of 44 characters
 Machine Readable Visas (MRV)  2 lines of 44 characters,
2 lines of 36 characters
 Travel Documents  2 lines of 36 characters,
3 lines of 30 characters
 Field of View Object Height  19.6 mm nominal
 Depth of Field  1.5 mm maximum from imager
window
MSR (Magnetic Swipe Card Reader)
 Magnetic Swipe Reader   Reads magnetic cards
complying with ISO7811/2-5
 Fingerprint Authentication Performance
 EER  <0.645%
 Enrollment Time  <1 sec
 Verification Time  <1 sec
 Fingerprint Sensor
 Sensor Type  Touch Area Sensor
 Sensing Area  8.0mm(W) × 8.0mm(L) × 0.7mm(D)
 Sensing Array  192 × 192 Pixel (508dpi)
 Pixel Resolution  256 gray scale values
1 Finger 1 Template Data  256 Byte
 Dimension and Environment
 Dimension 112mm(L) × 78mm(W) × 46mm(D)
 Sealing  IP54
 Drop  1.5m
 Operating Temperature  0℃ to 50℃
 Storage Temperature  -20℃ to 60℃
 Compatible Devices  RP1500 and RP1600
