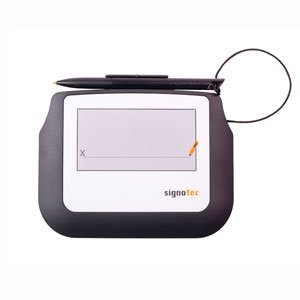

The “signotec Sigma LITE” is a cost-effective signature pad without LCD. The special thing about it: Instead of the LCD, the pad has a 4-inch (10.5 cm) hard-wearing writing surface for precise signature capture. Due to extremely robust design, the sensor is completely protected by a special foil surface.
The signotec Sigma LITE features the same pressure sensitive sensor as the LCD-pads, which allows the capturing of biometric signatures in best quality. The signee can see his signature in real-time on the computer monitor, but not on the pad. The pad is ideal for applications where customers solely need to provide a signature.
With an unbeatable price-performance ratio, measuring just 160 x 120 x 10 mm, it is extremely compact and therefore ideal for mobile use. When used stationary it convinces with its flat design without drops and edges.
The signotec Sigma Signature Pad is also available as LCD version with and without backlight!
The signotec Sigma LITE signature pad has, like the other pads of the signotec family, unique security features and outstanding technical properties for signature digitisation. The data transfer from pad to PC is encrypted, thereby it is not possible to spy on the biometric features of the signature. Since the electronics, firmware, drivers and applications have been developed by signotec itself, the hardware and software are matching perfectly.
Get the best price on signotec sigma lite Signature pads from IDV Technologies Africa Dubai, supplier of Signotec Signature Pads in , Saudi Arabia, GCC countries, Middle east , Indian Subcontinent and Africa.
Technical Specification:
| Size of Signing Area | 4″ (10,5 cm) without LCD |
| Active Signing Area | 92 x 47 mm |
| Dimensions | 160 x 120 x 10 mm |
| Display | In real-time on the PC-monitor |
| Security | AES-Encryption, RSA-signing. Signatures biometrics RSA-Encryption inside the pad. |
| Connection | USB (HID, no driver installation required) |
| Terminalserver | Yes. Optinal with internal virtual USB-Seriell-Converter (FTDI) |
| Internal Samplingrate | 6000 Hertz |
| External Samplingrate | 500 Hertz |
| Resolution | 4096 x 4096 Pixel absolut ≙ 2214 x 1130 ppi |
| Pen | No special pen, cheap replacement |
| Sensor | Scratch resistant surface |
| Input method | Special method for pen input |
| Surface | Special surface with wear protection |
| Warranty | 2 years |
