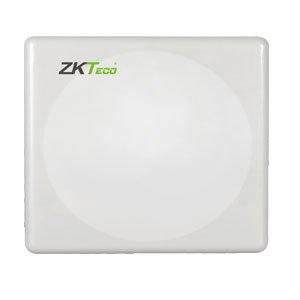

UHF Long range RFID Reader


Read range up to 12 meters (adjustable)

Read Sensitivity: Dual polarization read mode

The UHF RFID reader is an RFID long-range proximity card reader which can simultaneously read multiple passive UHF tags at ranges up to 12m.
The reader is waterproof and is suitable for use in a wide range of RFID applications, such as transport management, vehicle management, car parking, production process control, and access control.

Function :

• Read range up to 12 meters (adjustable)
• Read Sensitivity: Dual polarization read mode
• Wiegand 26-Bit (Can change to 34-Bit via software)
• Two working mode: Trigger read & Always read
• Comes with the mounting plate and RS-232 cable
• Weatherproof (IP68)
• Maximum Cable Distance: 100m

Technical Specifications

Model UHF1-6 UHF1-12
Dimension 306*306*75(mm) 450*450*83.5(mm)
Reading distance Up to 6 meters (adjustable) Up to 12 meters (adjustable)
communication interface Serial:RS-232Console, Wiegand 26(Default) /Wiegand 34
Frequency 902Mhz – 928Mhz, 865MHz – 868MHz
Shell Material Die-casting aluminum shell, Antenna panel with engineering plastics
Working Voltage 9~16V DC
Working Temperature ﹣22℃—55℃
Interface Protocol EPC global UHF Class 1Gen 2/ISO 18000-6c
Multiple tags identification >50
Multiple tags identification speed >50 Per second
Working mode Always read/Trigger read
I/O Interface Supports external trigger
Maximum power consumption <3W (RF output 26dBm,multiple tags), <2W (RF output 26dBm,Sigle tags)

For best offers on UHF readers contact IDV Technologies Africa on +971 56 915 7218 /sales@idvafrica.com. Whatever your need is we make sure you get the best product for the best price.
