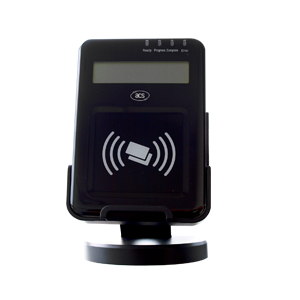

ACR1222L VisualVantage USB NFC Reader with LCD

ACR1222L-visual-vintage

OVERVIEW :

ACR1222L is an LCD-equipped PC-Linked NFC Contactless Reader with USB as its host interface. It is developed based on the 13.56 MHz RFID technology and the ISO/IEC 18092 standard. ACR1222L can support ISO14443 Type A and B cards, MIFARE, FeliCa and all 4 types of NFC tags.

With its PC/SC compliance, ACR1222L ensures easy upgrade of PC/SC smart card applications to improve user interaction. It is equipped with 4 LEDs, a buzzer and an LCD that provide users with clear indications of the reader or application status. The 2-line graphic LCD has multiple language support, including Chinese, English, Japanese and some European languages. The LCD  allows interactive operation such as scrolling up and down, left and right, etc. The device’s three built-in SAM slots provide enhanced security during contactless operations.

Typical applications of ACR1222L include e-payment, loyalty programs and access control. Best price guaranteed on entire range of ACR1222L NFC readers in Dubai from IDV Technologies Africa. Contact our sales team based in for the assured discount.

FEATURES :

  • USB 2.0 Full Speed Interface
  • CCID Compliance
  • Smart Card Reader:
    • Read/Write speed of up to 424 kbps
    • Built-in antenna for contactless tag access, with card reading distance of up to 50 mm (depending on tag type)
    • Support for ISO 14443 Part 4 Type A and B cards, MIFARE, FeliCa and all four types of NFC (ISO/IEC 18092) tags
    • Built-in anti-collision feature (only one tag is accessed at any time)
    • Three ISO 7816-compliant SAM slots
  • Built-in Peripherals:
    • Two-line graphic LCD with interactive operability (i.e. scroll up and down, left and right, etc.) and multi-language support (i.e. Chinese, English, Japanese and several European languages)
    • Four user-controllable LEDs
    • User-controllable buzzer
  • USB Firmware Upgradability

APPLICATIONS :

  • e-Government
  • Banking & Payment
  • e-Healthcare
  • Network Security
  • Access Control
  • e-Purse & Loyalty
  • Transportation

TECHNICAL SPECS :

Dimensions Main Body: 133.5 mm (L) x 88.5 mm (W) x 21.0 mm (H);
With Stand: 158.0 mm (L) x 95.0 mm (W) x 95.0 mm (H)
Weight Main Body: 173 g
With Stand: 415 g
Interface USB 2.0 Full Speed
Operating Distance Up to 50 mm (depends on the tag type)
Supply Voltage Regulated 5V DC
Supply Current 300mA (maximum); 50mA (standby); 150mA (normal)
Operating Temperature 0-50°C
Operating Frequency 13.56 MHz
Smart Card Interface Support
  • ISO 14443 Type A & B
  • MIFARE
  • FeliCa
  • 4 types of NFC (ISO/IEC 18092) tags
Compliance / Certifications
  • ISO 14443, CE, FCC, KC, VCCI, PC/SC, CCID, RoHS, USB Full Speed, Microsoft® WHQL
Operating System Support
  • Windows®
  • Linux®
  • Mac OS®
  • Android™ 3.1 and above
