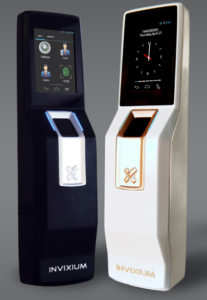

Invixium IXM MERGE – Effective. Bold. Focused.

Invixium IXM MERGE is an engineering and design marvel! With a plethora of features to boast about, MERGE has been designed to speak directly to the heart. Compatible with our dependable line of exquisite products, this masterpiece has been brought to life with the Invixium brand values of quality and performance ingrained into it..

Flex-Rigid PCB

The hybrid flex-rigid PCB that IXM MERGE is armed with is the first of its kind in the entire biometrics industry, contributing to its slim form and a breathtakingly svelte design with a maximum depth of only 33 mm. The Flex-Rigid PCB technology uses a single consolidated PCB, eliminating various failure points and reliability concerns arising due to inter connections between multiple PCBs. A phenomenal performance and a stunning look – the flex rigid PCB consists of all the core values embedded into the Invixium cullture!

Active Thermal Sensor

The innovative razor slim sensor from NEXT blended perfectly with the design requirements of IXM MERGE, enabling the sensor placement flush to the product surface for a smooth and natural finger placement. Operating on Active Thermal Sensing Technology, MERGE combines unparalleled performance with a flawless user experience for any finger type – dry, wet or otherwise. You have to experience it to believe it!


The kaleidoscopic 2.0 inch in-plane switching (IPS) LCD delivers brilliant colors with a 170 degree wide viewing angle, making it easy on the eyes for the user. Similar to our flagship product IXM TOUCH, the IXM MERGE LCD screen has been constructed with Corning Gorilla Glass 4, providing it with the toughness that tends to get masked by its overwhelming beauty and elegance. Keeping it simple yet stunning!

Android OS

All Invixium products, including IXM MERGE are built on the highly customizable and open sourced Android OS. The Android OS provides you with the ability to build a custom ROM as per your requirements making it easier to use and more personalized if needed. In case you are not interested in a custom ROM, the built-in OS and ROM have been designed to be exceptionally user-friendly and fun to operate.


Processor ARM Cortex A8 – 800MHz
Random Access Memory 512 MB DDR3L
Flash Memory – NAND 512 MB
Operating System Android® 4.1.2 (Jelly Bean)
Serial Communication RS485, USB Aux
Ethernet 100BASE-T
Wiegand Customizable up-to 512 bits
USB USB 2.0 On – The – Go (OTG)
# of SPO 1
Door Access Controller 1A (1-Output, 2-Input, 1-Relay)
Anti-Shock Vandal Protection Standard
LCD & Interface 2.0 inch Capacitive Touch screen
Super Strong Protective Screen Cover Corning® Gorilla® Glass 4
LEDs 1 (Power & Status)
Audio Speaker
1: N Users (records) 500 users (1K biometric records)
1 : 1 Users (records) 5K users (10K biometric records)
# of Transaction Logs 25K
Voltage & Current 12V – 24V DC (200mA)
Operating Temperature 0˚ C to +60˚ C (32˚ F to +140˚ F)
Regulatory Approvals and Certificates FCC, CE, RoHS, IP65 Kit (sold separately)

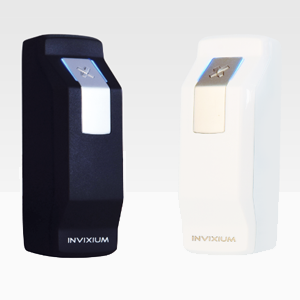

The idea for IXM MERGE CR was born out of the need for a gorgeous looking smart card reader with superior functionalities and terrific performance. Consisting of all the ingredients of the MERGE family except the LCD and the fingerprint sensor, MERGE CR supports various RFID card technologies and is integrated in IXM WEB, making it an ideal solution for installations where both biometric and card based devices are required.
