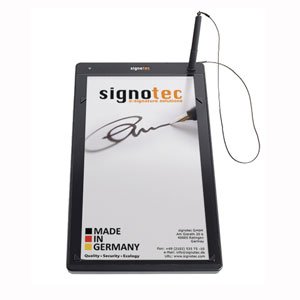

Signotec Alpha A4 Colour LCD Signature Pad


The signotec Alpha Pad differs substantially from the other signotec signature pads. That affects not only the size, but rather the technology regarding to capture the coordinates of the pen and even the parameters for processing.

Thanks to its display size of 15,6″ it is the only Signature Pad on the market, which has the ability to display A4-documents in their original size.
In doing so its not just a monitor extension, but rather a “real” Signature Pad like signotec Sigma and signotec Omega with the same powerful free of charge programming interface.

Even the requirement of the written form, which is e.g. essential for loan agreements, can be fulfilled with the signotec Alpha Pad:
The signee places the original document on the Pad and then signs both, the original and the digital document, simultaneously via digital blueprint.

If the paper document is not required as a result of the principle of freedom of contract, the ballpoint pen cartridge can simply be replaced with a plastic one.

It is then possible to electronically sign full-page documents directly on the high-resolution display.

Large pen pads are highly sought after by users who want to display complex documents that have to be signed. Delivery notes with several items or multi-page contracts that you can scroll are just two examples. Standard pen pads are just too small for this. While there are already large devices on the market that enable signing, these are usually just monitor extensions where the signer still sees all the other applications running on it.

To make the displayed content remain private, the device is provided with a “privacy viewing technology”. Thanks to that the content is protected against prying eyes.

Get the best price on signotec Alpha  Signature pads from IDV Technologies Africa Dubai, supplier of Signotec Signature Pads in , Saudi Arabia, GCC countries, Middle east , Indian Subcontinent and Africa.

Technical Specifications :

Display 15,6“ full-colour LCD with adjustable LED backlit and “Privacy Viewing”
Active signing area 344 x 211 mm
Dimensions 344 x 211 x 24 mm
Resolution 1366 x 768
Number of colours 65,536
Memory 128 MB RAM and 2 GB Flash-Memory
Input method ERT (Electromagnetic Resonance Technology)
Data transfer Secure Data transfer between PC and Pad and RSA-encryption
Cable Port USB, optional Ethernet
Connections HID, WinUSB, vCOM (Terminal Server) and optional Ethernet
Software API (SDK) included free of charge
Tip-technology Replaceable Tip technology with inking pen catridge
Pressure sensor unit 1024 pressure stages
Resolution 2400 lpi
Pen Battery-Free
Sensor On-screen handwriting, is only sensitive to ERT-Stylus, not influenced by hand touch, no erroneous input
Warranty 2 years
